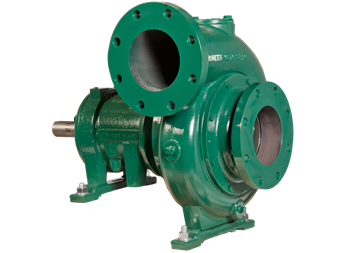

AKTSA Prime Series - End Suction Centrifugal Pump
| Pump Size | 100 x 100 mm | 4 x 4 inches |
|---|---|---|
| Max Flow | 370 m³/h | 1,600 USgpm |
| Max Head | 40 metres | 120 feet |
| Solids Size | 76 mm | 3 inches |
Product Details
Bare Shaft, Frame Mounted, Fully Automatic Dry Priming, Vacuum Assisted, Run Dry, Heavy Duty Solids Handling Pump
Features
| Heavy Duty Construction | Reduced maintenance costs |
|---|---|
| Large Solids Handling | Application flexibility |
| High efficiency design | Lower fuel costs |
| 50 CFM vacuum system | Rapid priming, overcomes minor suction-side leaks |
Options
- Electric driven
- Direct Coupled Electric
- SAE Mount
- 316 Stainless Steel Construction
Materials of Construction
| Standard Construction | CD4MCu Stainless Steel | |
| Shaft | 17-4 PH Stainless Steel | |
| Impeller | CA6NM SS | CD4MCu |
| Volute | Ductile Iron ASTM A536 65-45-12 | CD4MCu |
| Wear Ring | ASTM A48 Class 40 Gray Iron | 316 SS |
| Suction Cover | Ductile Iron ASTM A536 65-45-12 | CD4MCu |
| Brac-plate | Ductile Iron ASTM A536 65-45-12 | CD4MCu |
